MECOOL KD2 Google Certified TV Dongle
(In stock)$0.00
MECOOL KD2 Google Certified TV Dongle
AV1
Amlogic S905Y2
4GB LPDDR4 RAM 32GB eMMC
2.4G+5G WIFI
Bluetooth 5.1
Highlights
A small multimedia player oriented to streaming, the MECOOL KD2 dongle equips the Amlogic S905Y4. Running on the Android TV 11 and certified by Google, it has the Chromecast system integrated. The RAM is 4GB DDR4 while for storage we have 32GB, a figure that is not bad considering the format of this type of device.
The MECOOL KD2 dongle integrates an AMlogic S905Y4 SoC as a motor, a Quad Core with ARM Cortex-A35 processors and an ARM Mali-G31 MP2 GPU that reaches 850 Mhz.. The SoC incorporates the ARM Cortex-A35 consumption cores, apart from the support for the new AV1 codec coupled with video output up to 4K @ 60fps resolutions. HDR 10, HDR10 +, HLG & Dolby Vision technologies are also compatible.

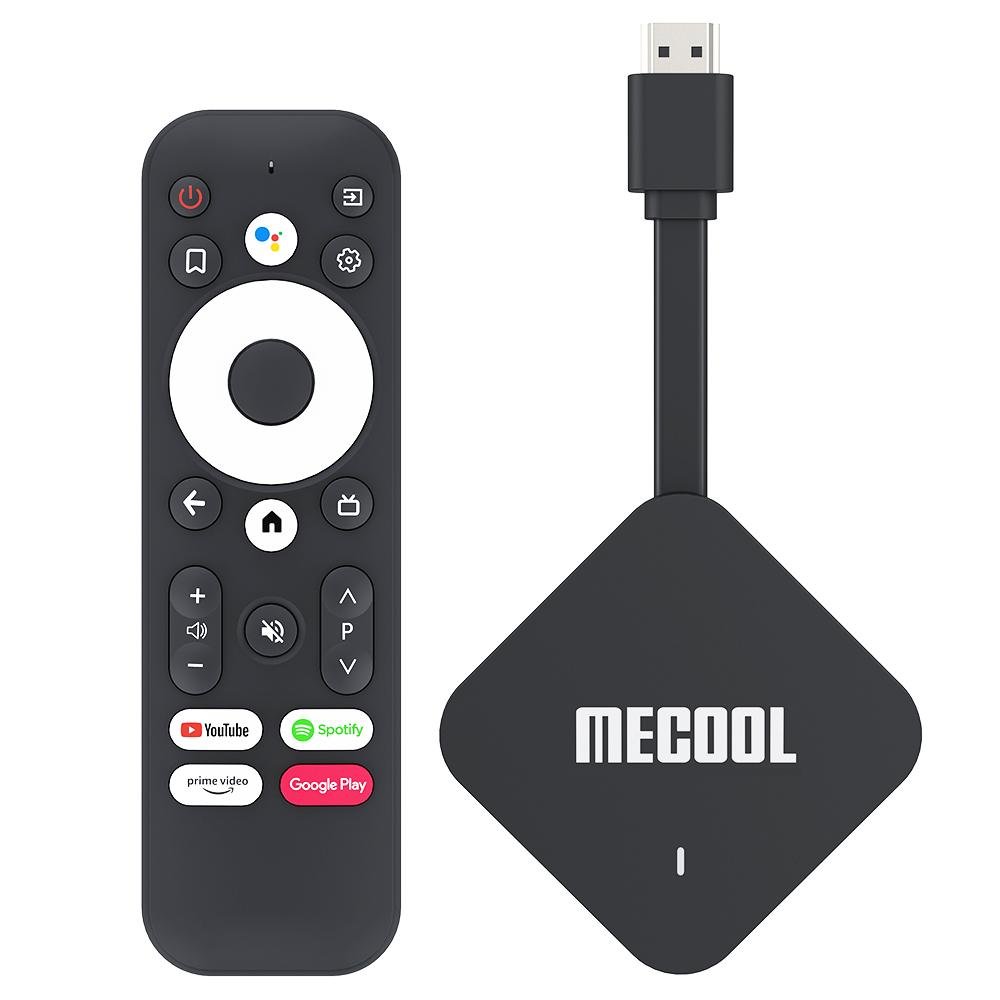

For wireless connectivity, Wi-Fi aC 2×2 MIMO and Bluetooth 5.0 are all available. As for connectors , we get a micro USB power port and an HDMI 2.0 video output. The included Bluetooth remote control allows direct access buttons to Prime Video, Spotify, YouTube and Google Play as well as a microphone for voice functions.
Specification
| General | Model: MECOOL KD2 Type: TV Box GPU: Mali G31 MP2 System: Android 11.0 CPU: Amlogic S905Y2 Core: Quad Core ARM Cortex A53 RAM : 4GB LPDDR4 ROM: 32GB eMMC |
|---|---|
| Media Supported | Decoder Format: H.264, H.265, VP9/VP6/VP8 Audio format: MPEG-1, MPEG-2 (L1/L2/L3), MP3, AAC-LC, HE AAC V1/V2, APE, FLAC, OGG, AMR-NB, AMR-WB, G.711 (u/a) decoding • G.711(u/a), AMR-NB, AMR-WB, AAC-LC encoding • 3~5m far field sound acquisition, supports speech enhancement, acoustic echo cancellation and direction of speaker estimation. • Virtual surround sound Video format: Allwinner Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4Kx2K@60fps 1x1080P@60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding - H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps - H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps - VP9, Profile 0/2, 4K@ 30fps - VP6/VP8, 1080P@60fps - MPEG1/MPEG2 SP@ML, MP@HL, 1080P@60fps - MPEG4 SP@level 0~3, ASP@level 0~5, GMC, short header format, 1080P@60fps - AVS /AVS JIZHUN profile@level 6.0, 1080P@60fps - VC-1 SP@ML, MP@HL, AP@level 0~3, 1080P@60fps - Supports Frame Buffer Compression(FBC) - Output pixel format configurable,YUV420/ YV12/NV12/... - Real-time image decoding- Maximum resolution up to 65536 x 65536 - Integrated JPEG hardware decoder - Configurable output pixel format- YUV420/YV12/NV12/... Photo Format: HD JPEG, BMP, GIF, PNG, TIF Support 5.1 Surround Sound Output: Yes |
| Product Details | 5G WiFi: Yes WIFI: 802.11 b/g/n/ac Bluetooth: 5.1 Power Supply: Charge Adapter Interface: HDTV Out,Micro USB,USB2.0 Language: Multi-language HDMI Version: 2.1 Other Functions: DLNA,Others HDMI Function: HDCP Power Consumption.: 5W |
| Power Requirement | Power Type: External Power Adapter Mode Power Input Vol: 5V Power Adapter Input: 100-240V / 50-60Hz Power Adapter Output: 5V 1A |
| Battery Information | Remote Controller Battery: 2 x AAA Battery ( not included ) |
| Dimensions and Weight | Product weight: 0.050 kg Package weight: 0.250 kg Product size (L x W x H): 6.8 x 6.8 x 1.4 cm Package size (L x W x H): 12.20 x 18.20 x 4.30 cm |
| Package Contents | Package Contents: 1 x TV Box, 1 x HDMI Cable, 1 x BT Voice Remote, 1 x English User Manual, 1 x Power Adapter |
