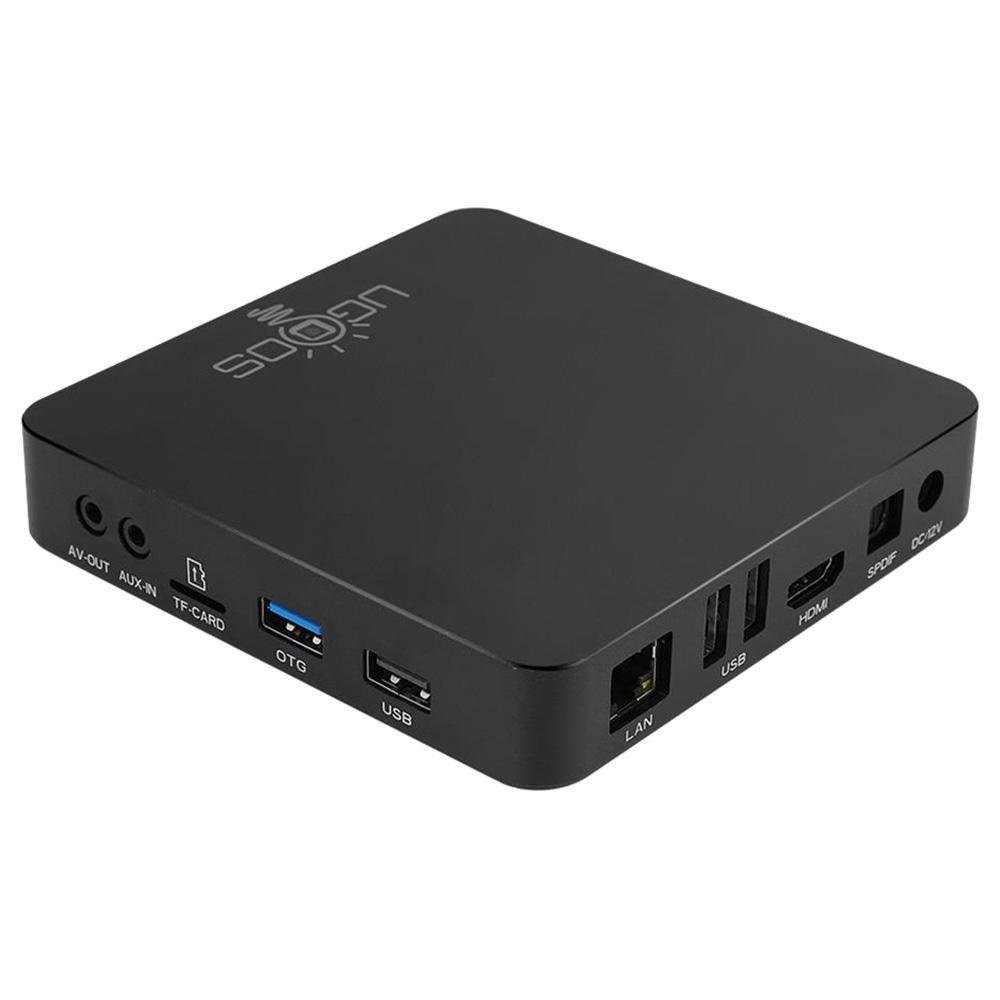

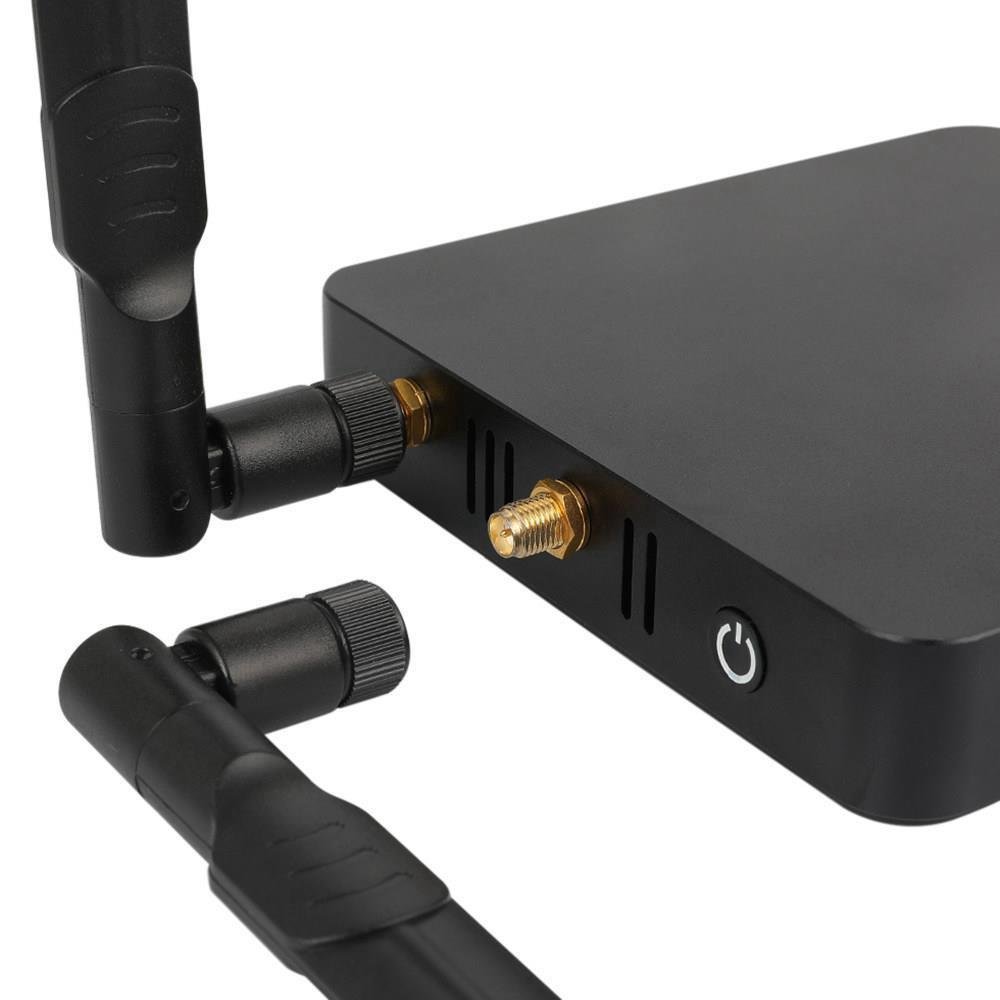

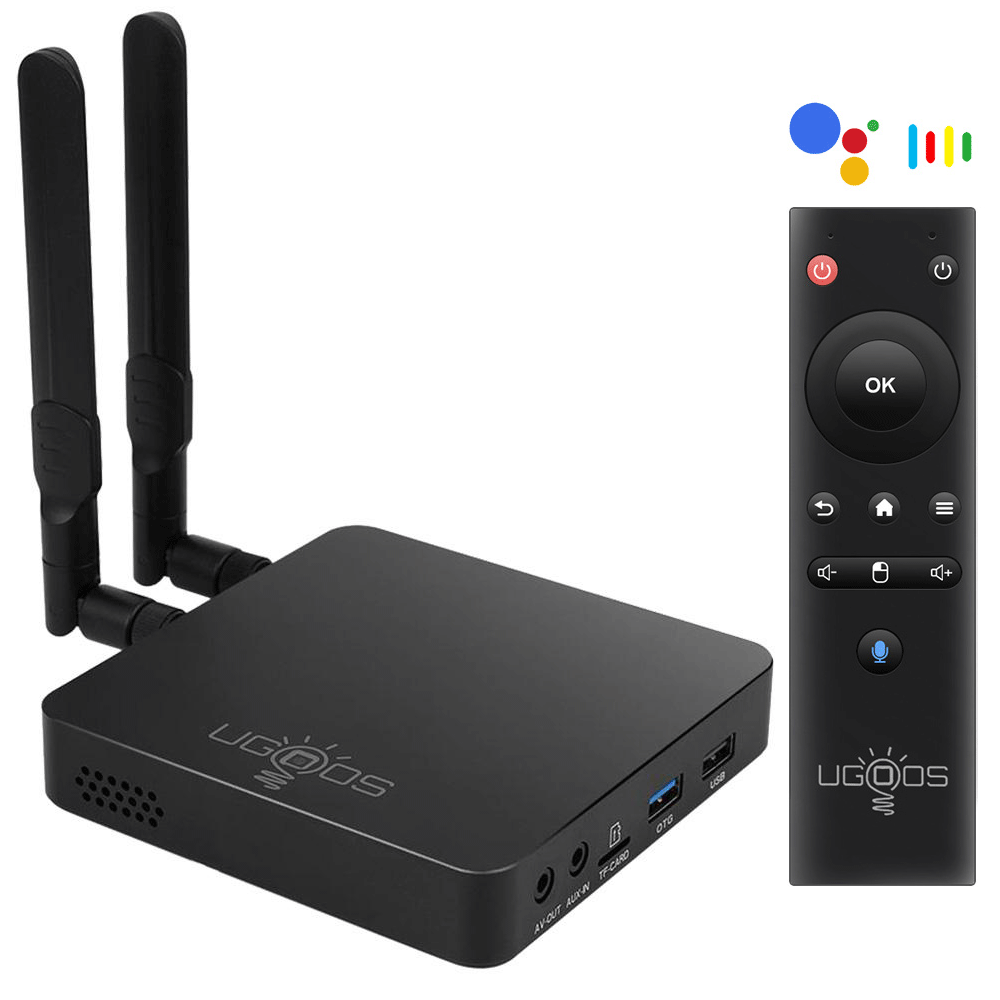

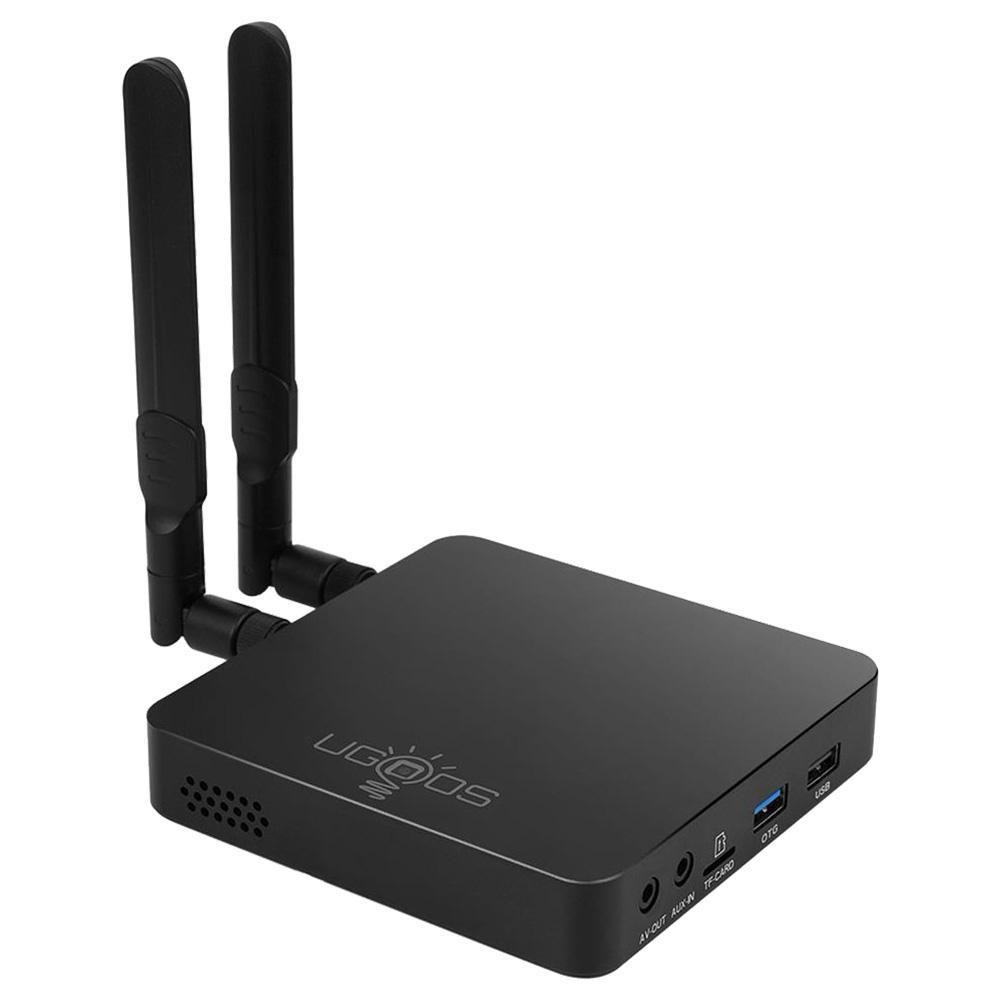

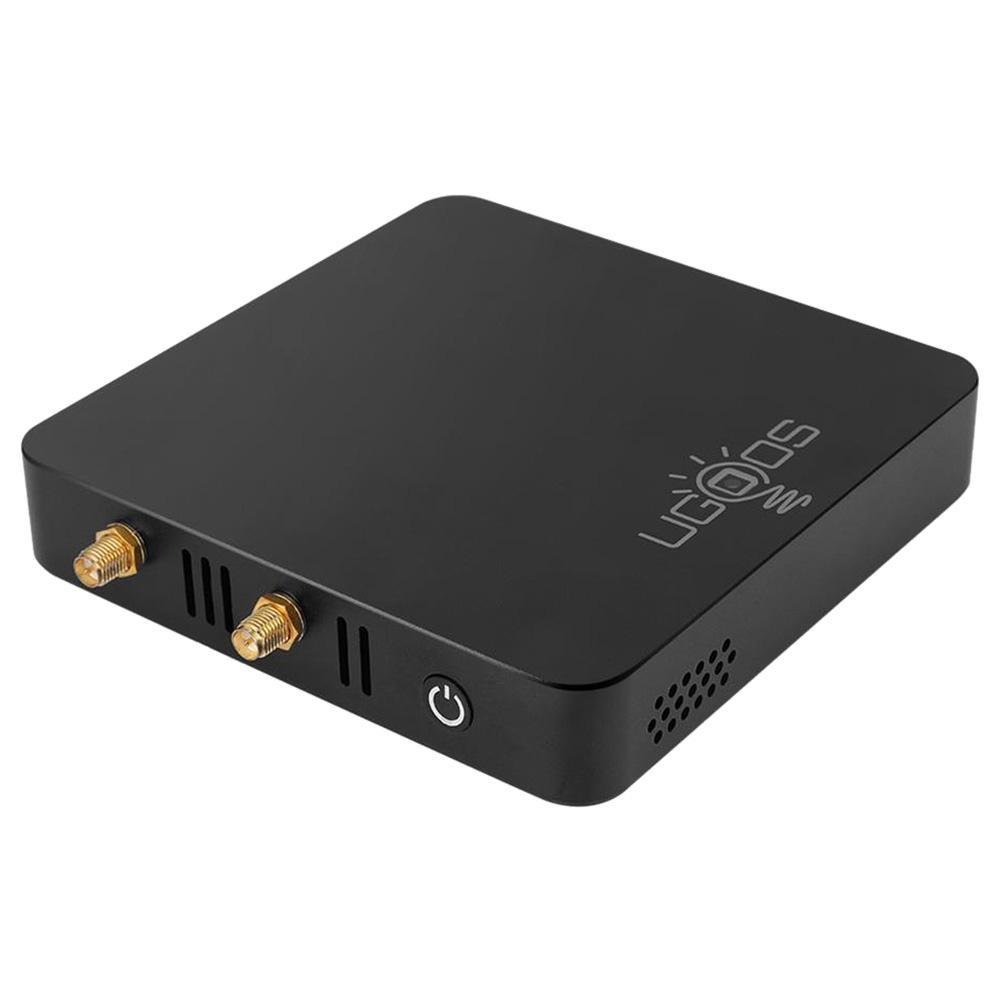

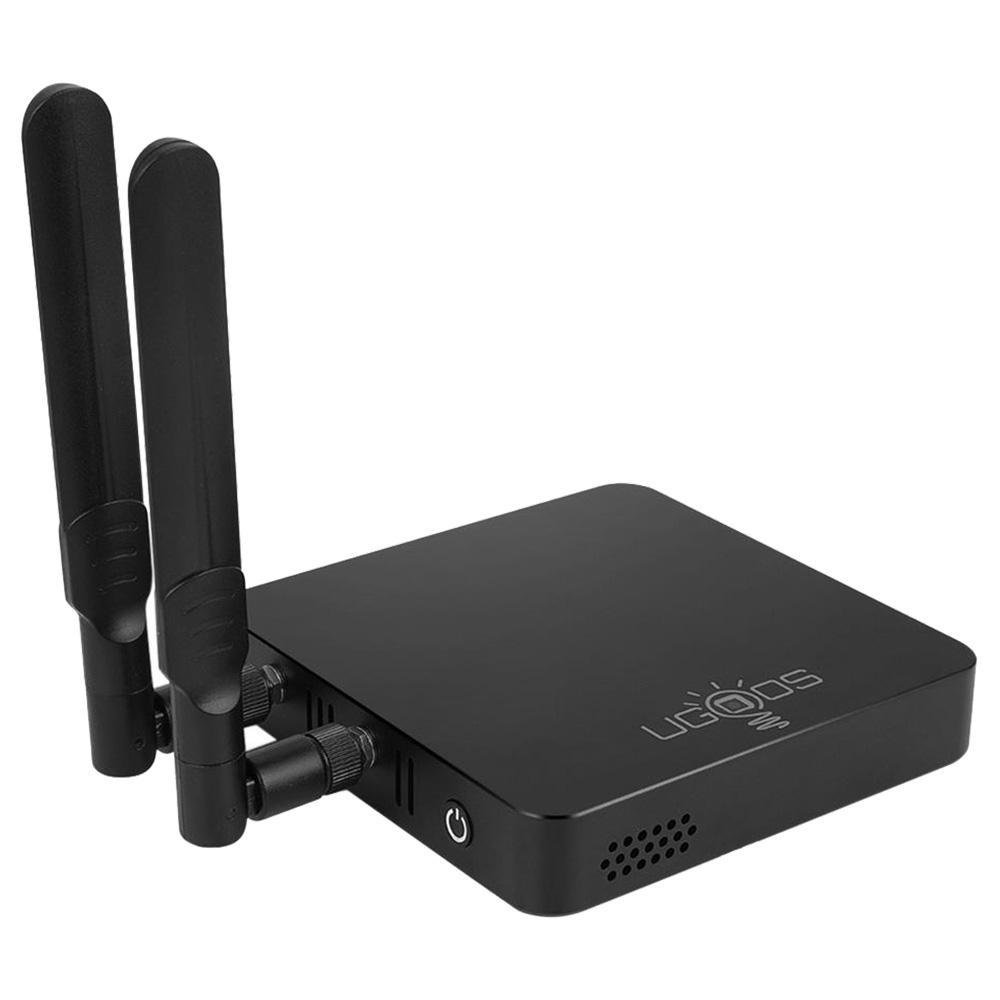

UGOOS AM6B Plus Amlogic S922X-J 4 GB/32 GB Android 9.0 4K TV-Box

 (In stock)
SKU: HS-2443-4WNRS

$166.99

Add to wishlist Compare

UGOOS AM6B Plus Amlogic S922X-J 4 GB/32 GB Android 9.0 4K TV-Box Wake Up im LAN mit 2,4G+5G MIMO WLAN 1000M LAN Bluetooth 5.0 HDMI 2.1 USB 3.0 - Schwarz


Highlights

AM6B Plus ist eine brandneue überarbeitete Version des 2020er-Nachfolgers AM6 Plus mit SoC Amlogic S922XJ, WiFi 6-Modul und weiteren Verbesserungen.
AM6 Plus erhält USB 3.0 Fast USB, Bluetooth 5.0, WIFI 5.0/2,4 GHz mit MIMO RSDB-Technologieunterstützung und eine ganze Reihe brandneuer Ugoos-Einstellungen an Bord.
Das Gerät wird mit einem OTA-Updater geliefert, Sie müssen die Firmware also nicht manuell aktualisieren.

w14ksjlxtjk.jpgweuzeun34g0.jpg4ufxftupwr4.jpg1fceq4pftn4.jpggcyto1oeqcu.jpgg5yvg5kpgyq.jpg1ireveepch2.jpg

Spezifikation

Allgemein Marke: UGOOS
Modell: AM6B Plus
Typ: TV-Box
Hardware

Betriebssystem: Android 9.0
Sprache: Englisch, Chinesisch ... Mehrsprachige Unterstützung
CPU: Amlogic S922XJ mit 12 nm, Quad-Core ARM Cortex-A73 und Dual-Core ARM Cortex-A53 CPU
GPU: ARM Mali TM-G52 MP6 (6 ppc)
SDRAM: LPDDR4 4 GB
Speicherkapazität (Flash): 32 GB EMMC
WLAN: 2,4 G + 5 G. Das Funkmodul entspricht dem IEEE 802.11 a/b/g/n/ac/ax 2x2 MIMO-Standard.
Bluetooth: Bluetooth 5.0 mit LE-Technologie
Der erweiterte Speicher: TF-Karte, bis zu 32 GB (SD2.X, SD3.X, SD4.X, eMMC ver5.0)
Stromversorgung: DC 12V/2A
HDR: Unterstützung

Kommunikation

WLAN: AP6398S, 2,4 G/5 G WLAN, IEEE 802.11 a/b/g/n/ac 2x2 MIMO
LAN: 1000M
Bluetooth: V5.0

Medien Amlogic Video Engine (AVE) mit dedizierten Hardware-Decodern und -Encodern
Unterstützt Multi-Video-Decoder bis zu 4Kx2K@60fps+1x1080P@60fps
Unterstützt mehrere „gesicherte“ Video-Dekodierungssitzungen und gleichzeitige Dekodierung und Kodierung
H.265/HEVC Main/Main10-Profil @ Level 5.1 High-Tier; bis zu 4K x 2K @ 60fps
VP9 Profil-2 bis zu 4Kx2K@60fps
H.265 HEVC MP-10@L5.1 bis zu 4Kx2K@60f
AVS2-P2-Profil bis zu 4Kx2K@60fps
H.264 AVC HP@L5.1 bis zu 4Kx2K@30fps
H.264 MVC bis zu 1080P@60fps
MPEG-4 ASP@L5 bis zu 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP bis zu 1080P@60fps
AVS-P16 (AVS+) /AVS-P2 JiZhun-Profil bis zu 1080P@60fps
MPEG-2 MP/HL bis zu 1080P@60fps (ISO-13818)
MPEG-1 MP/HL bis zu 1080P@60fps (ISO-11172)
RealVideo 8/9/10 bis zu 1080P@60fps
Schnittstelle

HDMI-Ausgang: HDMI (2.1 und 2.0) zur Unterstützung einer maximalen Ausgabe von 4K@60fps (HDCP2.2)
USB-Anschluss: 1 * USB 3.0 schnelle Geschwindigkeit, 3 * USB 2.0 Host
Optischer Ausgang: 1*SPDIF
Led Arbeit Licht: Unterstützung
Netzwerk: 1*RJ45 1000M (1000M Ethernet Integriertes IEEE 802.3 10/100/1000M Ethernet MAC mit RGMII
Schnittstelle)
Stromversorgung: 1 * DC-Buchse

Andere Eigenschaften

Fernbedienung: Fernbedienung
IM-Software: Unterstützt Skype/QQ/MSN/GTALK (Abhängig von APK)
Office-Software: WORD/EXCEL/PDF (abhängig von der APK-Installation)

Leistung

Stromversorgungstyp: Externer Netzteilmodus
12V-2A 24W Zertifizierung
Eingang: 100-240 V~50/60 Hz
Ausgang: 12 V, 2 A

Abmessungen und Gewicht Abmessungen: 117 x 117 x 18,5 mm
Nettogewicht: 300g
Geschenkbox-Größe: 162 x 162 x 80 mm.
Packungsinhalt

1 x TV-Box.
1 x IR-Fernbedienung
1 x Netzteil
1 x HDMI-Kabel
1 x USB-Kabel
2 x WLAN-Antenne.
1 X Benutzerhandbuch
